Hydraulic Hose Concrete Pumping Hose

                                         Heavy Duty Concrete Pumping Hose

Recommended For: High-pressure concrete pumping.
Markets: Construction, Cement Placement
Tube: Abrasion resistant synthetic rubber
Reinforcement: 2”-3” two braids high-tensile steel wires, 3 1/2”-5” four layers spiral high-tensile steel cords.
Cover: Pin-pricked synthetic rubber, Specially compounded Ultra abrasion cover is resistant to abrasion, cutting, gouging and weather.
Type of Coupling: Putzmeister, Schwing, SANY, Zoomline, etc.
Temperature Range: -40°F to +158°F(-40°C to +70°C)

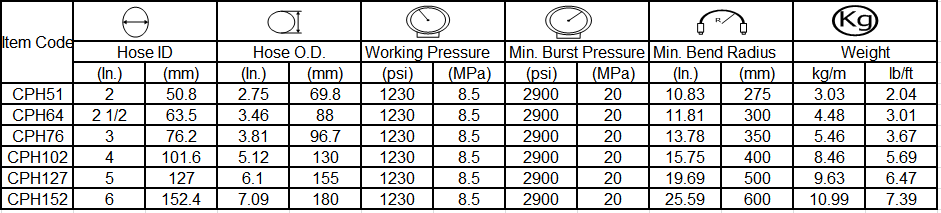

Specification of concrete pump hose

                                                           Concrete Transfer Hose

Recommended for: Pumping of concrete with high head pressures from concrete boom truck and as a discharge hose on the delivery end of high pressure concrete pumps.
Temperature Range: -40℉ to +158℉ (-40℃ to +70℃)
Tube: Black, Specially compounded abrasion-resistant & resilient natural rubber.
Reinforcement: High tenacity synthetic yarn. Two braids of high-tensile steel wires.
Cover: Specially compounded abrasion-resistant natural rubber, Black/Yellow.

Specification of concrete transfer hose

Raw Material:

Imported rubber materials NATURAL rubber from THAILAND AND MALAYSIA ,the rubber with SUPER STEADY PERFORMANCE is the highest quality rubber in the world.

Imported BELKTA steel wire with high tensile strength2750Mpa from Belgium.

high rubber content>52% ,superior abrasion resistance,abrasion loss  60-70mm

C30 cement >20000 m3.

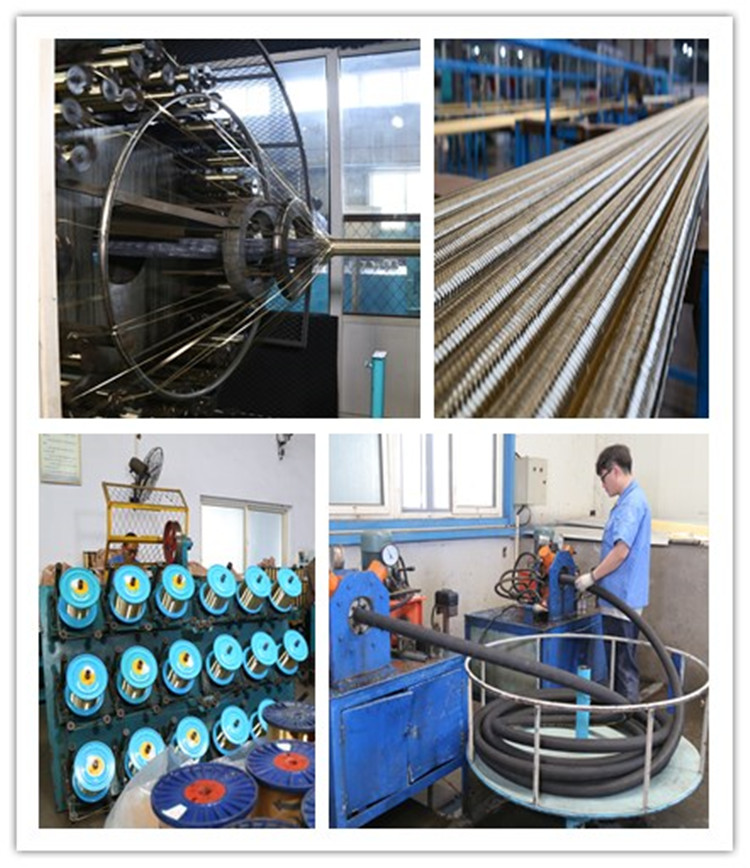

Factory Workshop:

Our factory introduce advanced technology and equipment to make the bets quality hydraulic hose.

Both outer & Inner tube extrusion max id 152mm,30m length density 30% higher than wrapped rubber,high density ,high abrasion resistance.

Laboratory:

Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material. After the production,

we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

Exports:

1).  advanced production equipment
2).  ISO 14000 / ISO 9000 / quality certificate
3).  strict quality control, strong r&d team
4).  environmental friendly without pollution
5).  10 years manufacturing experience, strong team
