Hydraulic Hose SAE100 R1 / EN 853 1SN

Recommended For:

Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R1 Type AT and

performance requirements of EN 853 1SN.
Application Fields: Mine hydraulic support,oilfield extraction machinery,mine / road / construction machinery

Cover: Black,oil,brasion and weather resistant,synthetic rubber.

-40℉ to +250℉ (-40℃ to +121℃)

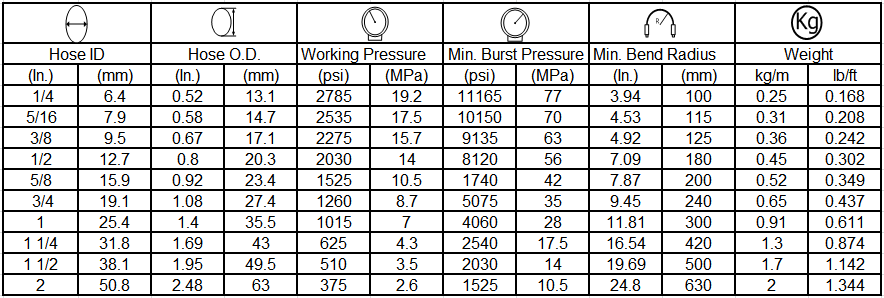

Specification of hydraulic hose r1

Standard : SAE 100 R1 AT

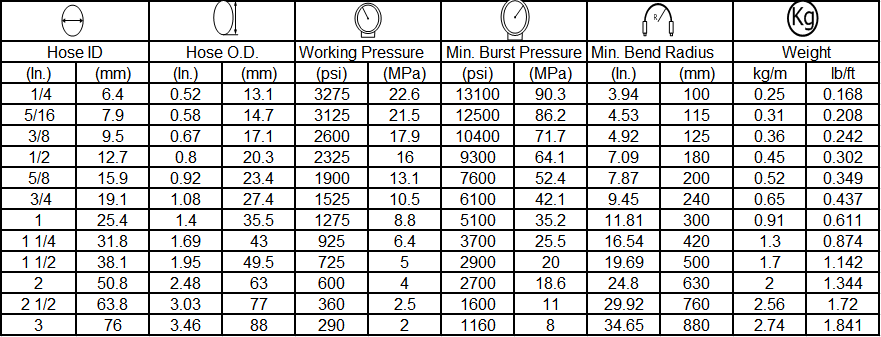

Standard : EN853 1SN

Products Application :

Hydraulic hose SAE 100R1 / EN 853 1SN can be used for forklift, hydraulic engine, oilfield extraction machinery, mine / road / construction machinery and so on.

Raw Material:

• imported rubber materials LG NBR rubber from South Korea,
• imported BELKTA steel wire with high tensile strength 2750 Mpa from Belgium.
• Good quality materials make our hydraulic hose steady performance ,
• Good decentrality, excellent oil resistance.

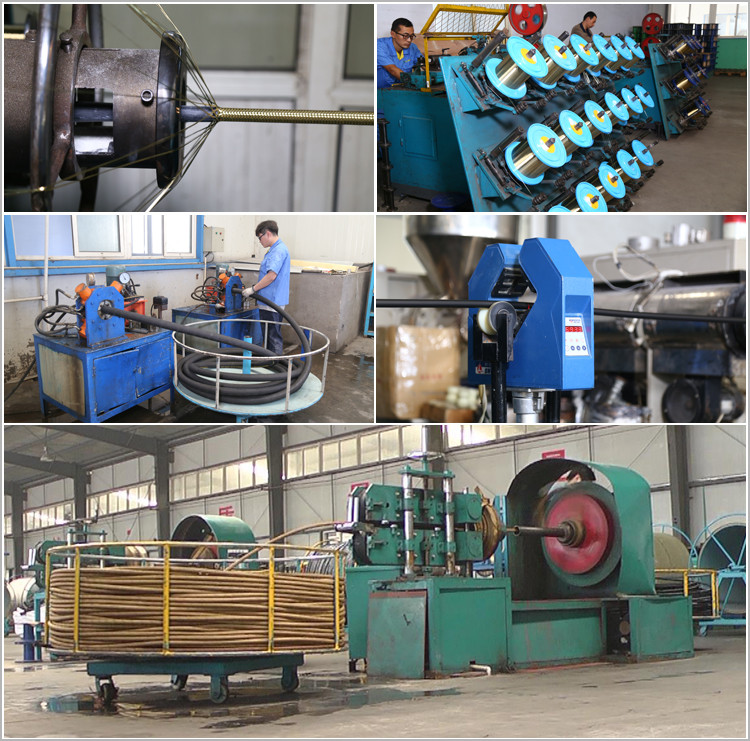

Factory Workshop:

• Our factory introduce advanced technology and equipment to make the bets quality hydraulic hose.
• Our bunching Machine is SEJIN MACHINE from Korea.The advantages of the machine are high accuracy ,high consistency,suspension difference < 70MM,the international standard is 120MM.
•  We use Mitsubishi electric control braiding machine .We use the machine can get high accuracy data collection, real-time braiding angle monitoring and correction.

Laboratory:

Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material

After the production, we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.

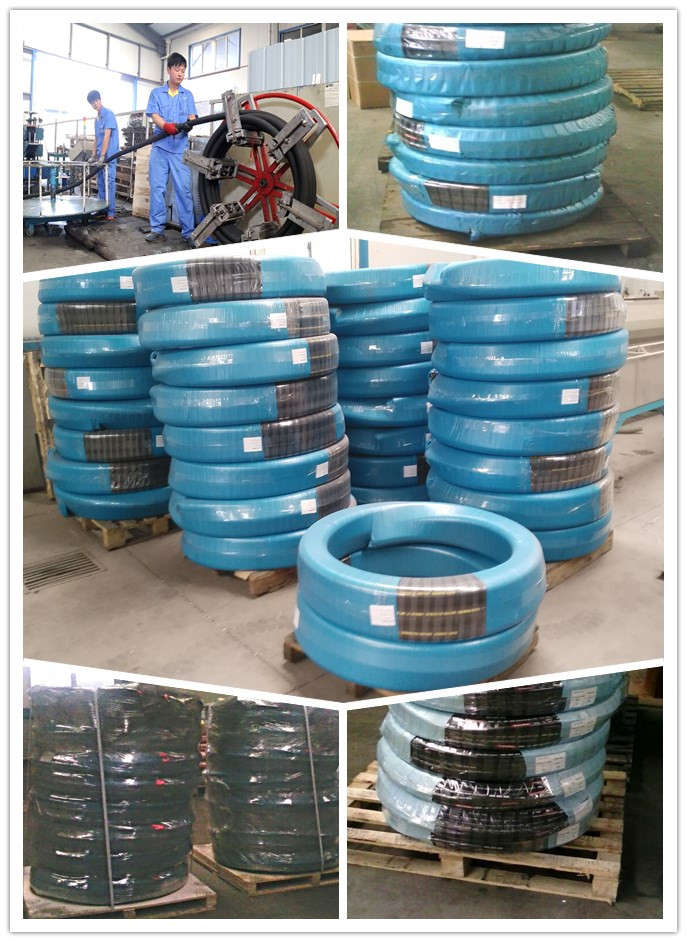

After finishing the Hydraulic Hose r1, we will pack the hose. In general, the packing will use woven bag and plastic film. Special packing is available according to customers’ requirements.

Exports:

1).  ADVANCED PRODUCTION EQUIPMENT
2).  ISO 14000 / ISO 9000 / QUALITY CERTIFICATE
3).  STRICT QUALITY CONTROL, STRONG R&D TEAM
4).  ENVIRONMENTAL FRIENDLY WITHOUT POLLUTION
5).  10 YEARS  MANUFACTURING EXPERIENCE, STRONG TEAM
