hydraulic rubber hose SAE100 R13is designed to meet all requirements of SAE 100R13 specifications . can be used for forklift,hydraulic engine,oilfield extraction machinery, mine / road / construction machinery and so on.

Hydraulic Rubber Hose SAE 100 R13

Product Description

Recommended For: Extremely high pressure, high mpulse hydraulic applications. This hose is designed to meet all requirements of SAE 100R13 specifications and performance requirements of EN 856 4SH, EN856 4SP and EN856 R13. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Tube: Black, oil-resident synthetic rubber(Nitrile)
Reinforcement: Four(six for 1 1/4”, 1 1/2” and 2”) alternating layers of spiraled, high-tensile steel wire.
Cover: Black, oil-resistant synthetic(Nitrile).
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)

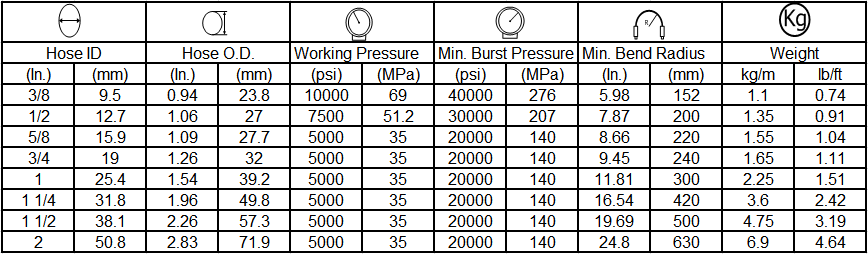

Specification of hydraulic hose r13

specification of hydraulic hose SAE100 R13

Products Application :
SAE 100 R13 can be used for forklift,hydraulic engine,oilfield extraction machinery, mine / road / construction machinery and so on.

Production

Raw Material:

SAE 100 R13 produced by imported rubber materials LANXESS NBR rubber from GERMANY ,the rubber is the highest quality rubber in the world .

Imported BELKTA steel wire with high tensile strength2750Mpa from Belgium.

Good quality materials make our hydraulic hose steady performance ,good decentrality,excellent oil resistance.

hydraulic rubber hose material

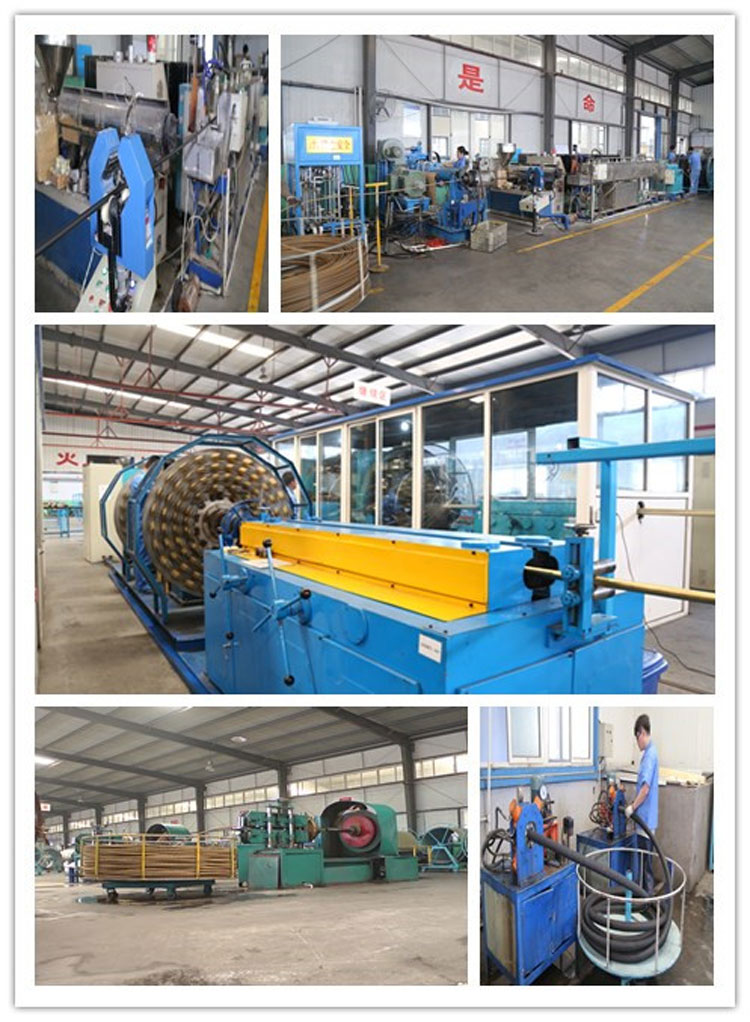

Factory Workshop:

Our factory introduce advanced technology and equipment to make the bets quality hydraulic hose.

Our Spiral Machine is 100% Servo electronics control from Japan engineer team’s master work.

The advantages of the machine are high length control accuracy,tolerance< 0.001 .

We use the machine can produce hydraulic hose with high strength inner rubber,high rubber content> 47%,superior impulse performance,impulse>500,000 circles .

hydraulic-hose-factory

Laboratory:

Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material.

After the production, we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.

hydraulic rubber hose laboratory

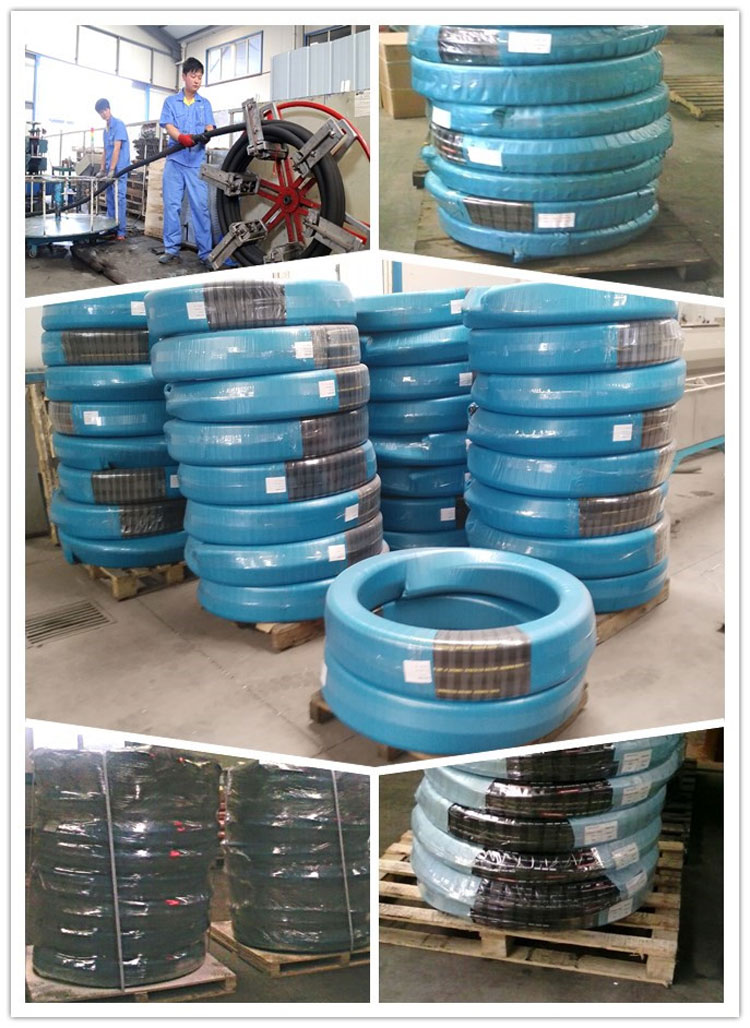

Packaging

After finishing the Hydraulic Hose r13, we will pack the sae100 r13. In general, the packing will

use woven bag and plastic film. Special packing is available according to customers’ requirements.

hydraulic hose packaging

Certifications

Market & Exports

Market: Our product has exported to over 30 countries, including the United States, Britain, Brazil, Russia and so on and we participate in overseas exhibitions every year.
hydraulic rubber hose market

Exports:

hydarulic-hose-exports

why choose us

1). ADVANCED PRODUCTION EQUIPMENT
2). ISO 14000 / ISO 9000 / QUALITY CERTIFICATE
3). STRICT QUALITY CONTROL, STRONG R&D TEAM
4). ENVIRONMENTAL FRIENDLY WITHOUT POLLUTION
5). 10 YEARS MANUFACTURING EXPERIENCE, STRONG TEAM

SAE 100 R13 production
