Hydraulic Hose SAE100 R14

True Bore PFFE with Stainless Steel Braid----- Natural or Conductive (Static Dissipative)

Recommend For : Air compressor discharge,hot oil and fluids,hot and greasy environments.

Tube: True bore PTFE .See Hose Stock Characteristics.

Cover/ reinforcement: one braid of stainless steel wire.

Temperature Range : -65F to +450F (-54 ℃ to + 232℃)

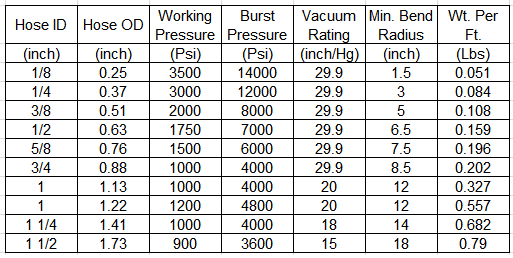

specification of hydraulic hose r14

Seamless Convoluted PTFE 316 Stainless Steel Braid----- Natural ----Conductive (Static Dissipative)

Recommend For : Air compressor discharge,hot oil and fluids,hot and greasy environments.

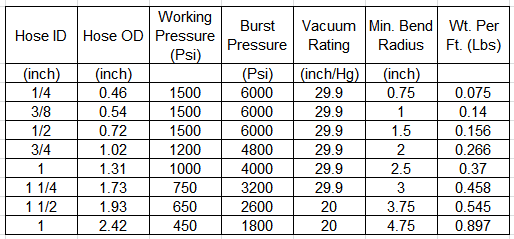

Tube: Seamless Convoluted PTFE S316.See Hose Stock Characteristics.

Cover/ reinforcement: one braid of stainless steel wire.

Temperature Range : -65F to +450F (-54 ℃ to + 232℃)

Laboratory:

Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material. After the production,

we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

Exports:

1).  ADVANCED PRODUCTION EQUIPMENT
2).  ISO 14000 / ISO 9000 / QUALITY CERTIFICATE
3).  STRICT QUALITY CONTROL, STRONG R&D TEAM
4).  ENVIRONMENTAL FRIENDLY WITHOUT POLLUTION
5).  10 YEARS  MANUFACTURING EXPERIENCE, STRONG TEAM
