Hydraulic Rubber Hose SAE100 R3 AT

Tube:Black,oil resistant,synthetic rubber.

Reinforcement:Two braids fiber layer

Cover:Black, oil,abrasion and weather resistant, thin synthetic rubber

Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)

Products Application :
Hydraulic hose SAE 100R3 can be used for hydraulic oil delivering ,and some low oil machine.

High rubber content without recycled rubber,high tensile impregnation polyester thread,

Good quality materials make our Hydraulic hose SAE 100R3 superior strength between layers.

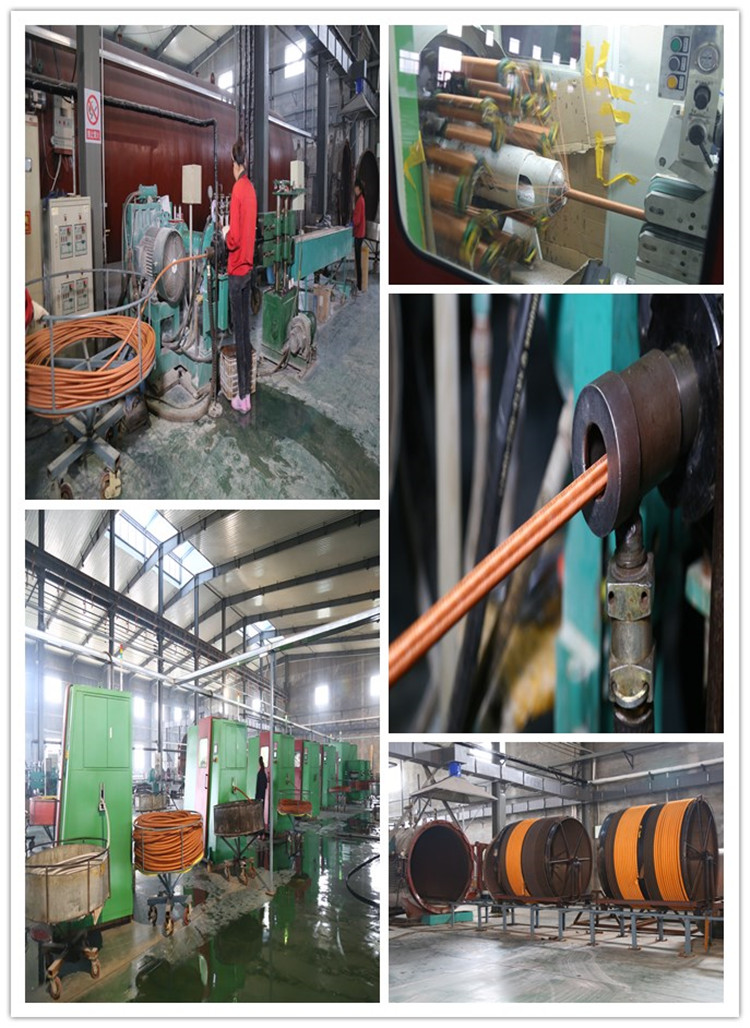

Workshop :
Our factory introduce advanced technology and equipment to make the best quality hydraulic hose.

Our braiding Machine is automatic with high speed machine ,braiding angel monitoring and correction automatic .

Hose max length can be 100m from ID 6mm to 25mm.

Laboratory:
Our factory has strong quality control team,we set up advanced laboratory for hydraulic hose,

before mass production,we test each batch raw material.

After production,we test each hose to guarantee 100% qualification.Each hose tested at 1.5 times of working pressure.

We do everything possible to supply good quality goods for our customer.

Exports:

1).  ADVANCED PRODUCTION EQUIPMENT
2).  ISO 14000 / ISO 9000 / QUALITY CERTIFICATE
3).  STRICT QUALITY CONTROL, STRONG R&D TEAM
4).  ENVIRONMENTAL FRIENDLY WITHOUT POLLUTION
5).  10 YEARS  MANUFACTURING EXPERIENCE, STRONG TEAM
