Hydraulic Rubber Hose SAE100 R4

Recommended For: Petroleum and water-base hydraulic fluids in suction lines or in low pressure return line.Meets or exceeds requirements of SAE 100 R4. Uses half the bend radius of SAE 100R4.

Tube: Black, synthetic rubber is specifically designed for resistance to high temperatures.

Cover: Black synthetic rubber is oil and abrasion resistant.

Temperature Range: -40℉ to +212℉ (-40℃ to +100℃)

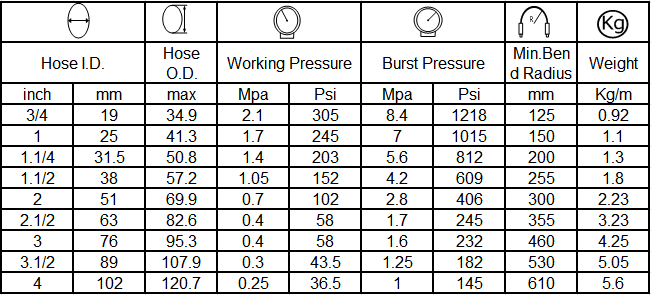

Specification of hydraulic hose r4:

Application :
Hydraulic hose SAE 100R4 can be used for low pressure oil suction & delivery machine.

Raw Materials:
Imported rubber materials LG NBR rubber from South Korea,

High rubber content without recycled rubber,

Good quality materials make our Hydraulic hose SAE 100R4 superior strength between layers.

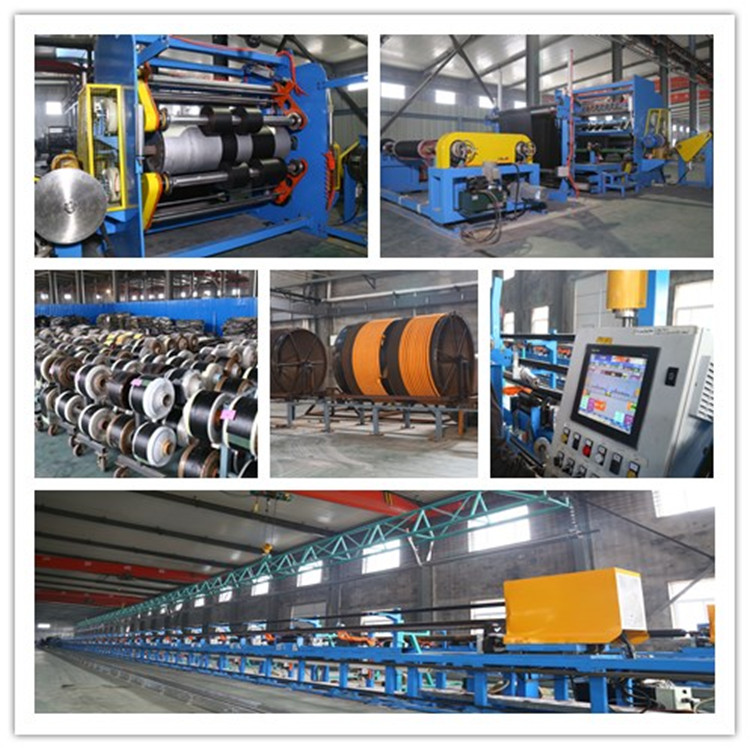

Workshop :
Our factory introduce advanced technology and equipment to make the best quality hydraulic hose.

Our bunching Machine is automatic with high speed machine ,braiding angel monitoring and correction automatic .

Hose max length can be 100m from ID 6mm to 25mm.uniform reinforcement fabric by multi-blade slitter ,uniform thickness of inner ,middle,outer rubber,

Italy VP automatic production equipment,heavy and uniform wrapping strength,high density,superior adhesive strength between layers,max length : 61m(200ft)

Our factory has strong quality control team,we set up advanced laboratory.

For hydraulic hose,before mass production,we test each batch raw material.

After production,we test each hose to guarantee 100% qualification.

Each hose tested at 1.5 times of working pressure.

We do everything possible to supply good quality goods for our customer.

Exports:

1).  ADVANCED PRODUCTION EQUIPMENT
2).  ISO 14000 / ISO 9000 / QUALITY CERTIFICATE
3).  STRICT QUALITY CONTROL, STRONG R&D TEAM
4).  ENVIRONMENTAL FRIENDLY WITHOUT POLLUTION
5).  10 YEARS  MANUFACTURING EXPERIENCE, STRONG TEAM
