Hydraulic Rubber Hose SAE100R9  SAE100R10  SAE100 R12

Recommended For:  Extremely high pressure, high impulse hydraulic applications. Exceeds all performance requirements for SAE 100 R9 / R10 / R12, EN856 R9 / R10 / R12, SAE 100 R12 and EN856 4SP. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Tube:  Black, oil-resident synthetic rubber (Nitrile)
Reinforcement:  Four alternating layers of spiraled, high-tensile steel wire.
Cover:  Black, oil-resistant synthetic(Nitrile).
Temperature Range:  -40℉ to +250℉ (-40℃ to +121℃)
Application:  Hydraulic system service with petroleum and water-based fluids, for general industrial use.

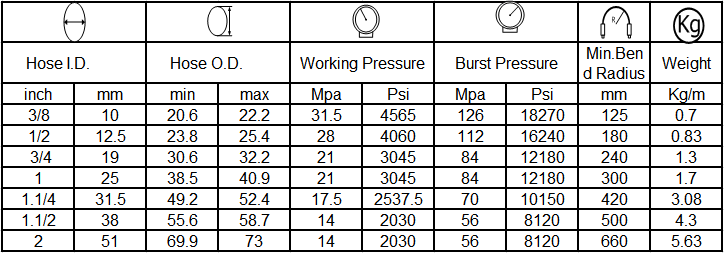

Specification

Products Application:
SAE 100 R9 can be used for forklift,hydraulic engine,oilfield extraction machinery, mine / road / construction machinery and so on.

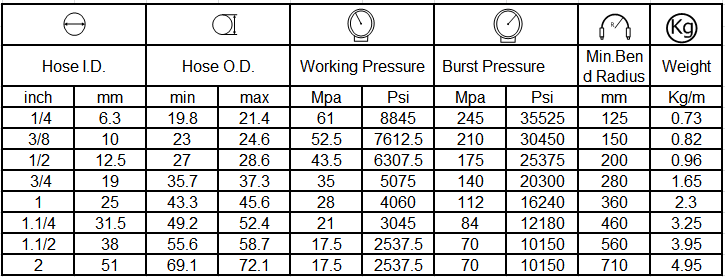

SAE 100 R10

Products Application:
SAE 100 R10 can be used for forklift,hydraulic engine,oilfield extraction machinery, mine / road / construction machinery and so on.

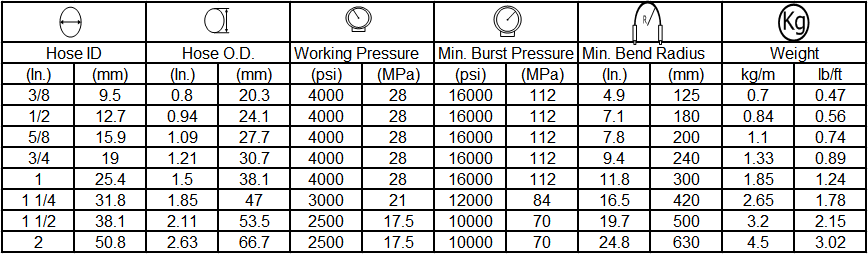

SAE 100 R12

Products Application:
SAE 100 R12 can be used for forklift,hydraulic engine,oilfield extraction machinery, mine / road / construction machinery and so on.

Raw Material:

SAE 100 R9 R10 R12 produced by imported rubber materials LANXESS NBR rubber from GERMANY ,

The rubber is the highest quality rubber in the world .

Imported BELKTA steel wire with high tensile strength2750Mpa from Belgium.

Good quality materials make our hydraulic hose steady performance ,good decentrality,excellent oil resistance.

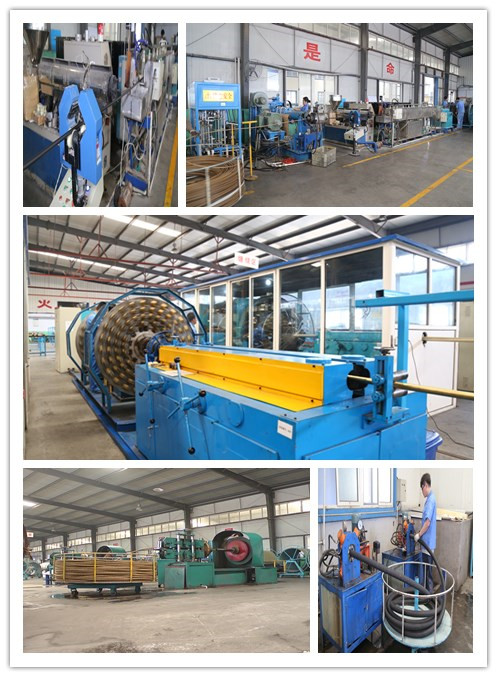

Factory Workshop:

Our factory introduce advanced technology and equipment to make the bets quality hydraulic hose.

 Our Spiral Machine is 100% Servo electronics control from Japan engineer team’s master work.

The advantages of the machine are high length control accuracy,tolerance< 0.001 .

We use the machine can produce hydraulic hose with high strength inner rubber,high rubber content> 47%,superior impulse performance,impulse>500,000 circles .

Laboratory:

Our factory has strong quality control team, we set up advanced laboratory.

Before the mass production, we test each batch of raw material.

After the production, we test each hose to guarantee a 100% qualification.

Each hose tested at 2 times of working pressure.

We do everything possible to supply good quality goods for our customer.

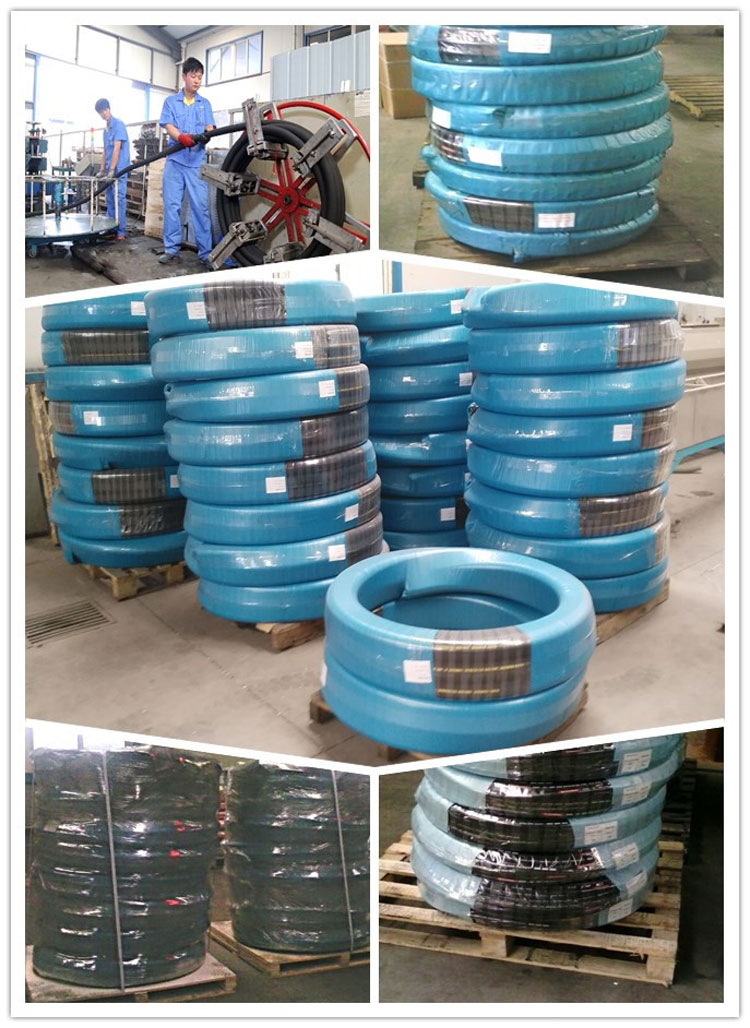

After finishing the Hydraulic Hose production, we will pack the hose. In general, the packing will

use woven bag and plastic film. Special packing is available according to customers’ requirements.

Exports:

1).  ADVANCED PRODUCTION EQUIPMENT
2).  ISO 14000 / ISO 9000 / QUALITY CERTIFICATE
3).  STRICT QUALITY CONTROL, STRONG R&D TEAM
4).  ENVIRONMENTAL FRIENDLY WITHOUT POLLUTION
5).  10 YEARS  MANUFACTURING EXPERIENCE, STRONG TEAM
